Designs/ Milan Pop-up
Milan Pop-up
Milan%20Pop-up
Model No. 35001
Series:
OTHER
Grid:
600 mm
Verification:
not structurally checked.
Description:

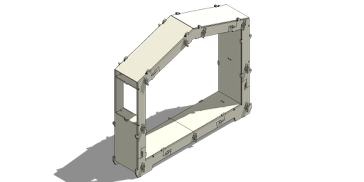

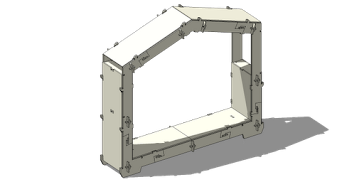

A micro test house which was built during Milan design week, April 2012. Does not conform to any series. It was the first experiment with a zero-bolts system. Result: The zero-bolts connections were very successful; made the overrall structure considerably more robust, as well as significantly reducing assembly time. However, one thing to note: the wedged joints does not prevent the frame pieces from popping out sideways slightly (not to a point where the structure would fail, but by 1-2mm). So an improvement might be to introduce a further little 'C' clamp which holds the two F layers together. Thanks to Hacked Milan and La Rinescente. Video below by Alice Masters.
A micro test house which was built during Milan design week, April 2012. Does not conform to any series. It was the first experiment with a zero-bolts system. Result: The zero-bolts connections were very successful; made the overrall structure considerably more robust, as well as significantly reducing assembly time. However, one thing to note: the wedged joints does not prevent the frame pieces from popping out sideways slightly (not to a point where the structure would fail, but by 1-2mm). So an improvement might be to introduce a further little 'C' clamp which holds the two F layers together. Thanks to Hacked Milan and La Rinescente. Video below by Alice Masters.
Downloads:
[Download SketchUp Model]
[Download Cutting Templates]
Download Cutting Templates
